Achieving a mirror finish on aluminum transforms its surface into a highly reflective and visually appealing state. This process requires precision and consistency, which can be challenging with manual methods. An aluminium polishing machine simplifies this task by delivering uniform results through motorized buffing wheels. The machine ensures consistent pressure and movement, reducing physical strain and enhancing efficiency. Robotic systems further improve repeatability by applying the same pressure and pass count every time. Preparation and technique remain crucial, as a clean and well-prepared surface ensures the best results. With the right approach, achieving a flawless mirror finish becomes attainable with the help of an aluminium polishing machine.
Key Takeaways
- Begin with clean aluminum. Wash, remove grease, and dry it well.
- Check for flaws before polishing. Fix scratches or dents for smooth results.
- Pick the right sandpaper grit. Start with rough grit for big scratches, then use finer grit for shine.
- Use polishing compounds properly. Move in circles and press evenly for a shiny look.
- Stay safe by wearing gear. Goggles, masks, and gloves keep you safe from dust and heat.
Preparing for Mirror Finish Polishing
Cleaning the Aluminum Surface
Cleaning plays a critical role in achieving a mirror finish on aluminum. A clean surface ensures that no contaminants interfere with the polishing process. Dirt, grease, and residues can cause scratches or blemishes, which compromise the final result. Follow these steps to prepare the aluminum surface effectively:
- Wash the surface with soap and water to remove dirt and debris.
- Apply a degreaser to eliminate oils and other residues.
- Rinse thoroughly and dry the surface using a clean, lint-free cloth.
- Inspect the surface to ensure no contaminants remain.
Each step ensures the aluminum is free of impurities, creating a smooth foundation for polishing. Skipping this preparation can lead to imperfections that affect the mirror-like quality of the finish.
Inspecting for Scratches or Imperfections
Before polishing, inspect the aluminum for scratches, dents, or other imperfections. These flaws can become more noticeable after polishing if not addressed. Use a bright light to examine the surface closely. Mark any areas with visible damage for further treatment. Sanding may be necessary to smooth out deeper scratches or uneven spots. This step ensures the aluminum surface is uniform, which is essential for achieving a mirror finish.
Masking Areas to Protect During Polishing
Certain areas of the aluminum may require protection during polishing. Masking prevents accidental damage or unwanted polishing in specific sections. Common materials used for masking include:
| Material Type | Application Description |
|---|---|
| Lacquers | Widely used stop-off materials for hard chromium plating. |
| Aluminum Foil Tapes | Compatible with electroplating, paint stripping, and non-caustic etching applications. |
| Glass Tapes | Commonly used in HVOF spray and blasting operations due to high temperature resistance. |
| Plastic Tapes | Employed in plating and anodizing facilities with various types and strengths available. |
Choose the appropriate masking material based on the application. Proper masking ensures that only the desired areas receive polishing, preserving the integrity of the rest of the aluminum surface.
Step-by-Step Guide to Using an Aluminum Polishing Machine
Sanding the Surface
Selecting the Right Sandpaper Grit
Sanding is the foundation of mirror finish polishing. Choosing the correct sandpaper grit ensures the removal of imperfections while preparing the aluminum for polishing. Start with coarse grit sandpaper, such as 220-320, to eliminate deep scratches or dents. Progress to medium grit (400-600) to smooth the surface further. For minor imperfections, use fine grit sandpaper ranging from 800 to 1200. To achieve a mirror-like finish, finish with extra fine grit (1500-2000 or higher). Wet sanding is an excellent option for reducing scratches and maintaining a smooth surface. For larger surfaces, power tools like orbital sanders are effective, while hand sanding works best for smaller parts.
Sanding Techniques for Smooth Results
Proper sanding techniques are essential for achieving a uniform surface. Begin with consistent, linear motions or circular movements, depending on the area. Apply light to medium pressure to avoid damaging the aluminum. Regularly check progress to ensure even sanding and prevent over-sanding. Clean the surface with a damp cloth between grit changes to remove debris. This step-by-step process ensures the aluminum is ready for the next stage of polishing.
Applying Polishing Compounds
Choosing the Best Polishing Compounds for Aluminum
Selecting the right polishing compounds is crucial for achieving a high-gloss shine. Start with a brown tripoli compound for medium polishing stages. Follow with a green rouge cutting compound for finer polishing. Finish with a purple buffing compound to enhance the mirror-like finish. Using compounds specifically designed for aluminum prevents oxidation and ensures a flawless result.
For optimal results, use an orange airway with brown tripoli at 3500 RPMs, followed by a yellow buffing wheel with green rouge. Conclude with a flannel buffing wheel and purple compound at 2200-1800 RPMs.
Effective Application Methods
Applying polishing compounds correctly ensures a smooth and polished aluminum surface. Begin with a clean surface and apply the compound evenly using a soft cloth or sponge. Use circular motions with consistent pressure to cover the entire area. Buff the surface with a polishing machine for a uniform shine. Gradually switch to finer compounds to remove any remaining imperfections. After polishing, clean the surface with water and a soft cloth to remove residues.
Buffing for a Mirror Finish
Using the Right Buffing Pads
Buffing pads play a significant role in achieving a mirror finish. Use firm pads for initial stages and softer pads for final polishing. Flannel or cotton pads work well for creating a mirror-like finish. Ensure the pads are clean and free of debris to avoid scratches.
Techniques for Even and Consistent Buffing
Consistent pressure and movement are key to effective buffing. Apply light to medium pressure to avoid damaging the aluminum. Use small, circular motions to spread the compound evenly. Maintain consistent movement to prevent uneven areas. Allow the surface to cool periodically to avoid overheating. Regularly check progress to ensure a flawless mirror finish.
Best Tools for Polishing Aluminum

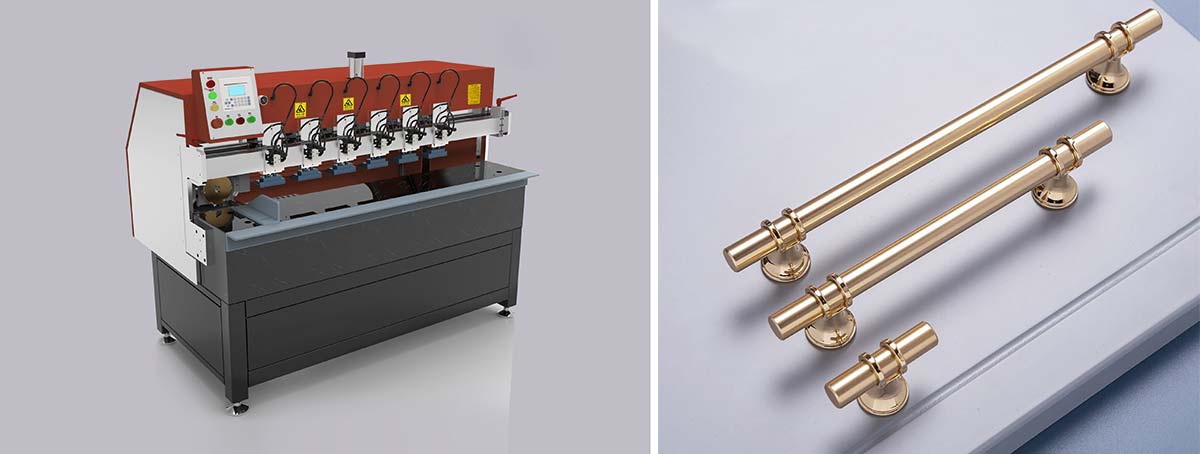

Types of Aluminum Polishing Machines
Different types of aluminum polishing machines cater to various needs, from small-scale projects to industrial applications. Hand polishing remains a traditional method for smaller tasks, but it requires significant effort and time. For more efficient results, buffing wheels paired with polishing compounds are widely used. These tools allow users to achieve a smooth surface and prepare aluminum for mirror finish polishing.
Polishing machines equipped with motorized buffing wheels are ideal for larger-scale projects. These machines ensure consistent pressure and movement, resulting in uniform and efficient polishing. Electropolishing, another advanced method, uses an electrochemical process to smooth and polish aluminum surfaces. Specialized aluminum polishing machines offer speed and repeatability, reducing muscle fatigue and enabling users to handle intricate designs or large production volumes effectively.
Essential Accessories for Mirror Finish Polishing
Achieving a mirror finish requires the right accessories. Handheld polishers with variable speeds provide control and efficiency during the polishing process. Buffing wheels play a crucial role in different stages of polishing. For initial cutting, a yellow buffing wheel works best. A white untreated buffing wheel smooths the surface, while a white domet flannel polishing wheel delivers the final mirror-like finish.
Polishing compounds are equally important. Gray buffing compound is ideal for cutting, brown tripoli compound smooths the surface, and white rouge polishing compound creates the ultimate shine. Sanding tools, such as orbital sanders and various grits of sandpaper, prepare the aluminum surface for polishing. Safety equipment, including respirators, protects users from dust and debris during the process.
Recommended Products for Polished Aluminum
Selecting the best tools for polishing aluminum ensures optimal results. For sanding, high-quality sandpaper in grits ranging from 220 to 2000 is essential. Orbital sanders save time and effort on larger surfaces. Polishing machines with motorized buffing wheels, such as those from trusted brands, provide consistent and professional results. For polishing compounds, products like brown tripoli, green rouge, and purple buffing compounds are highly recommended for achieving a mirror finish.
Buffing pads, including flannel and cotton options, enhance the polishing process. Handheld polishers with adjustable speeds allow users to refine their techniques and achieve a flawless mirror-like finish. Investing in these tools and accessories simplifies the process of mirror finish polishing and ensures polished aluminum surfaces stand out with a brilliant shine.
Avoiding Common Mistakes During Polishing
Preventing Overheating of Aluminum
Overheating is a common issue during aluminum polishing. Excessive heat can warp the surface or cause burnishing, which diminishes the mirror-like finish. Several factors contribute to overheating:
- Prolonged buffing in one area.
- Excessive polishing without allowing the surface to cool.
- Using a polishing machine at high speeds for extended periods.
To prevent overheating, operators should polish in short intervals and allow the aluminum to cool between sessions. Consistent pressure and movement across the surface help distribute heat evenly. Using a polishing machine with adjustable speed settings can also minimize friction. If overheating occurs, the aluminum may require re-sanding to restore its smoothness before continuing the polishing process.
Avoiding Uneven Pressure
Uneven pressure during polishing can lead to undesirable results. Applying inconsistent pressure often causes imperfections such as swirl marks or an uneven surface finish. The table below highlights these consequences:
| Consequence | Description |
|---|---|
| Uneven Surface | Inconsistent application of polishing compounds results in a non-uniform finish. |
| Swirl Marks | Improper buffing techniques create visible marks, reducing the polished aluminum’s shine. |
To avoid these issues, operators should maintain consistent pressure throughout the process. Using both hands to guide the polishing machine ensures better control. Regularly inspecting the surface helps identify areas requiring additional attention. By following these techniques, users can achieve a flawless mirror finish.
Ensuring All Steps Are Followed
Skipping steps in the mirror finish polishing process often leads to subpar results. Commonly overlooked steps include:
- Thorough cleaning to remove dirt and grease before polishing.
- Proper sanding techniques, starting with coarse grit and progressing to finer grits.
- Even application of polishing compounds using circular motions.
- Initial sanding to smooth the surface, which many neglect.
- Inspecting and repeating the buffing process to address remaining imperfections.
- Performing a final inspection to ensure the desired mirror-like finish.
Each step in this step-by-step process is essential for achieving polished aluminum with a brilliant shine. Neglecting any stage can result in visible imperfections or an uneven finish. Operators should follow the process meticulously to ensure success.
Safety Tips for Using Aluminum Polishing Machine
Wearing Proper Protective Gear
Safety begins with wearing the right protective gear. Polishing aluminum generates fine dust particles and heat, which can pose risks to the user. Operators should wear safety goggles to shield their eyes from flying debris. A dust mask or respirator is essential to prevent inhalation of aluminum dust, which can irritate the respiratory system. Heat-resistant gloves protect hands from burns caused by friction during polishing. Closed-toe shoes and long-sleeved clothing provide additional protection against accidental contact with the polishing machine or aluminum surface. Ensuring proper gear minimizes the risk of injuries and creates a safer working environment.
Maintaining Adequate Ventilation
Proper ventilation is crucial when polishing aluminum. The process produces fine dust and fumes that can accumulate in enclosed spaces, posing health hazards. Operators should work in well-ventilated areas or use exhaust systems to remove airborne particles. For indoor settings, installing fans or air purifiers helps maintain air quality. Moist aluminum dust should be stored in containers that allow hydrogen gas to escape safely, reducing the risk of explosions. Regularly cleaning the workspace prevents dust buildup, ensuring a safer and more efficient polishing process. Adequate ventilation protects both the operator and the surrounding environment.
Safe Handling of Polishing Machines
Handling polishing machines safely requires attention to detail and adherence to guidelines. Operators should avoid exceeding the maximum speed of rotating polishing discs to prevent breakage and flying parts. Maintaining the minimum shaft diameter and maximum tool dimensions specified by the manufacturer ensures stability during operation. The clamping depth of tools should be at least 15 mm to secure them properly. Aluminum dust should be stored in closed containers to prevent moisture penetration, reducing fire hazards. Additionally, operators must avoid processing aluminum with spark-generating materials to prevent explosions. Following these precautions ensures safe and efficient use of polishing machines.
Conclusion
Achieving a professional-quality mirror finish by using aluminum polishing machine requires a systematic approach. Key steps include sanding with progressively finer grits, buffing with polishing compounds, and sealing the surface to maintain the high-gloss shine. Proper preparation, such as removing stubborn scratches and cleaning the aluminum, ensures a flawless result. Using the right tools and techniques, like preventing swirl marks during buffing, enhances the final outcome. Refining skills through practice allows users to achieve a professional-grade shine. With dedication and attention to detail, anyone can transform aluminum surfaces into stunning, polished masterpieces.
